High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper

Name: High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper
Brand: MENSION
Price: 1 USD

Brand Name : MENSION

Model Number : MS-51M

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 31mm

Crimping Force : 350T

System Pressure : 31.5Mpa

Power : Hand Pump

Size : 730*550*680mm

Weight : 170Kg

Product Name : 51M Manual Hose Crimping Machine

Contact Now

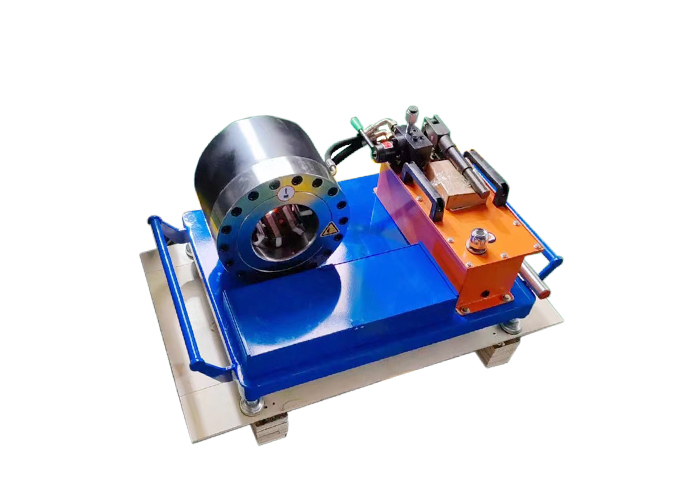

2 INCH MANUAL HIGH PRESSURE HOSE CRIMPER MS-51M

DESCRIPTION

MS-51M manual hose crimping machine is specially designed and manufactured for site crimping, when there is no power supply. With big hydraulic manual pump, it can crimp up to 2 inch 4SH 4SP hydraulic high pressure hose.

ADVANTAGES

1. Compact structure, easy to move;

2. High precision dial, more convenient;

3. Hard polishing mold, high hardness;

4. Safe die sets box.

TECHNICAL DATA

Model	MS-51M Manual Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	350 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	31 (mm)
Die Sets	10
Die Set Type	51
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	Manual Pump
Motor Power	Manual Pump
Length	730 (mm)
Width	550 (mm)
Height	680 (mm)
Weight	170 (KG)

High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper

NOTE

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;

51 CRIMPING MACHINE STANDARD DIE SETS

Die No.	Crimping Range
6*	6 - 8mm
8*	8 - 10mm
10*	10 - 12mm
12*	12 - 14mm
14	14 - 16mm
16	16 - 19mm
19	19 - 23mm
23	23 - 27mm
27	27 - 31mm
31	31 - 35mm
35	35 - 41mm
